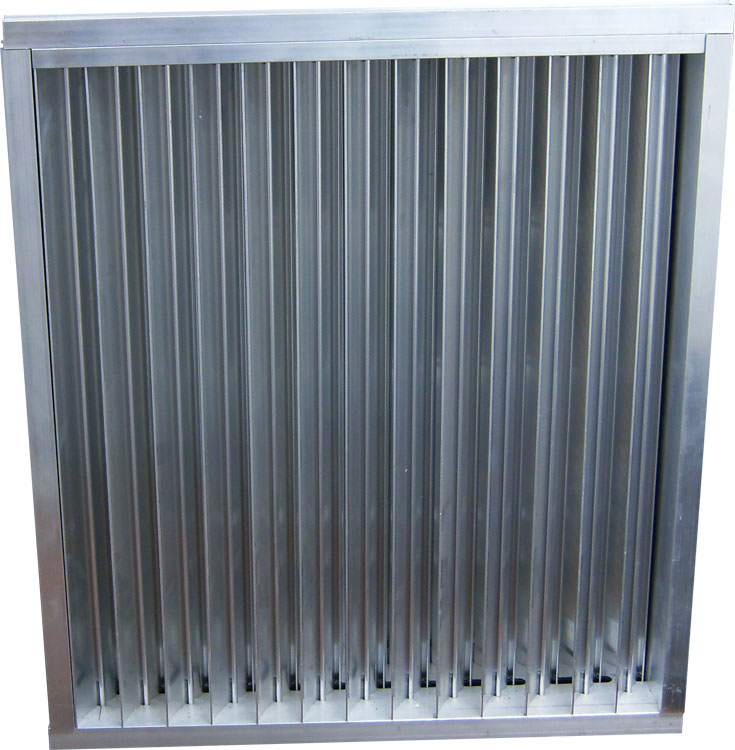

Model: | A680 |
Filter: | A680 |
Minimum Size: | 18" x 18" |
Maximum Size: | 96" x 96" up to 32 ft2 |
Frame Depth: | 6" Deep |
Frame Material: | .125" Thick Extruded Aluminum 6063-T6 Alloy Head/Sill .080" Thick Extruded Aluminum 6063-T5 Alloy Jambs |
Blade Material: | .081" Thick Extruded Aluminum 6063-T6 Alloy |
Blade Orientation: | Vertical |
Blade Type: | Chevron |
Blade Angle: | N/A |
Continuous Line: | Yes (Horizontal) |
Screen Options: | Standard Bird Screen: ½" Expanded Aluminum Bird Screen on Interior; Variety of Bird and Insect Screen Options |
Pressure Tolerance: | 150± PSF |
Free Area: | 49.1% (7.85 ft2 for 48" x 48") |
Water Penetration: | .01 oz. at 1250 fpm |
Pressure Drop: | .164 in. w.g. at 1250 fpm and 9813 scfm |
Missile Impact: | Enhanced Protection Rated at 55 MPH per ASTM 1886/1996 |
AMCA: | Certified for Air Performance and Wind-Driven Rain |
Miami-Dade: | TAS-100(A)-95 TAS(PA)201, TAS(PA)202, TAS(PA)203 |
NOA Number: | See Current Submittal Sheet |
