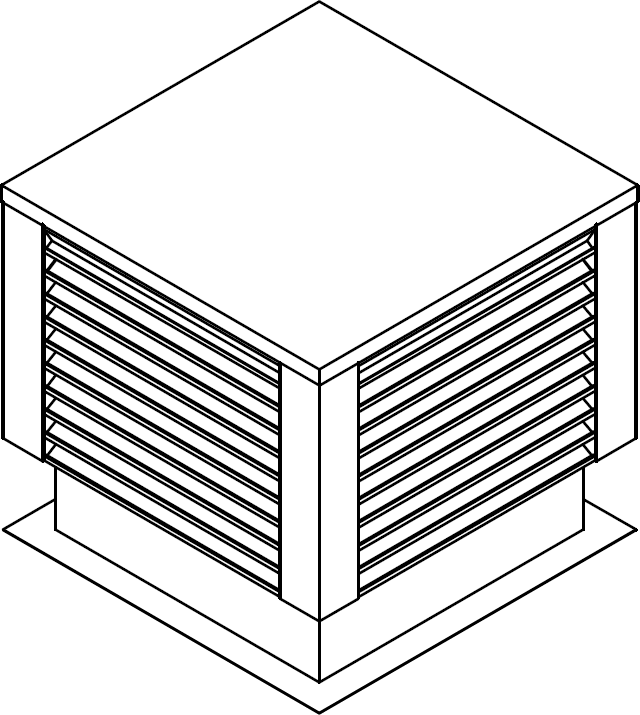

Dade County Approved 6" Drain Blade Post Corner

Quick Specs

Model:	APH64
Filter:	APH64
Minimum Size:	12" x 12" x 12"
Maximum Size (W x L x H):	72" x 72" x 48"
Depth:	6"
Material:	.081" Thick 6063-T52/T6 Extruded Aluminum
Roof:	1 Piece 12 ga. Hinged, Insulated Aluminum
Screen (optional):	#2" Removeable Expanded Aluminum Bird Screen
Max Design Load:	±70 PSF (167 MPH)
Miami-Dade:	Tested to TAS-201, TAS-202, TAS-203
NDA #:	06-0822.08

*For additional options/configurations see spec sheet or contact the factory.

Miami-Dade County, Florida Certified Storm Louvre

Union Made in The USA
