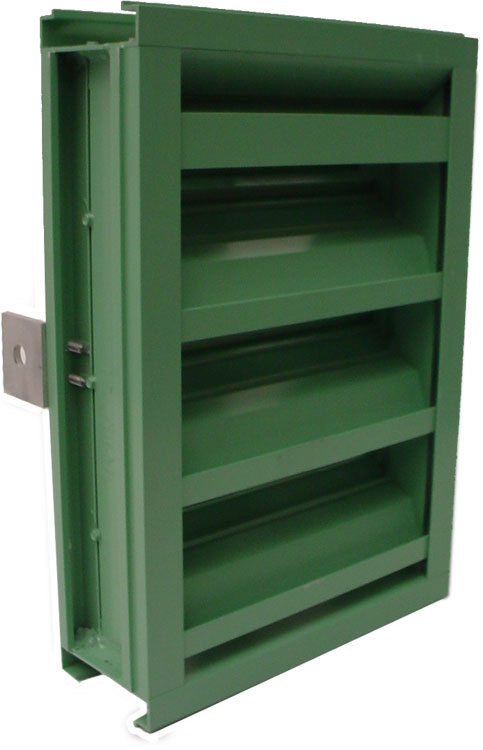

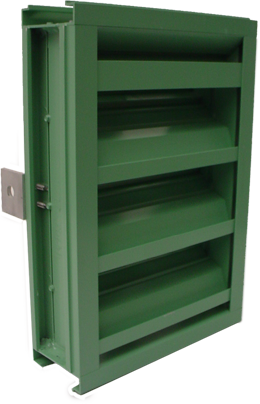

6" Deep Fixed Dual Drainable Blade Hurricane Louver (Miami-Dade Certified)

Excellent weather protection with little pressure loss.

Quick Specs

Model:	A320
Filter:	A320
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	6" Deep
Frame Material:	.125" Thick Extruded Aluminum 6063-T6 Alloy
Blade Material:	.081" Thick Extruded Aluminum 6063-T6 Alloy
Blade Orientation:	Horizontal
Blade Type:	Single Drainable
Blade Angle:	40°
Continuous Line:	No
Face:	Full Width Sill, Blades and Head Contained in Jambs
Screen Options:	Standard Bird Screen: ½" Expanded Aluminum Bird Screen on Interior; Variety of Bird and Insect Screen Options
Pressure Tolerance:	180± PSF
Free Area:	58% (9.24 ft² for 48" x 48")
Water Penetration:	0.01 oz. at 1250 fpm
Air Performance:	0.21 in. w.g. at 1250 fpm and 11550 scfm
AMCA:	Certified for Air Performance and Water Penetration
Miami-Dade:	TAS(PA)201, TAS(PA)202, TAS(PA)203

*For additional options/configurations see spec sheet or contact the factory.
